About Single and Multi Cartridge/Bag Filter Systems

Single & Multi Cartridge Filters

TFIs Single and Multi Cartridge Filters are engineered for efficient and reliable filtration of liquids, gases, and process fluids across a wide range of industrial applications. These filters are designed to remove suspended solids, particles, contaminants, and other unwanted impurities while maintaining consistent process performance.

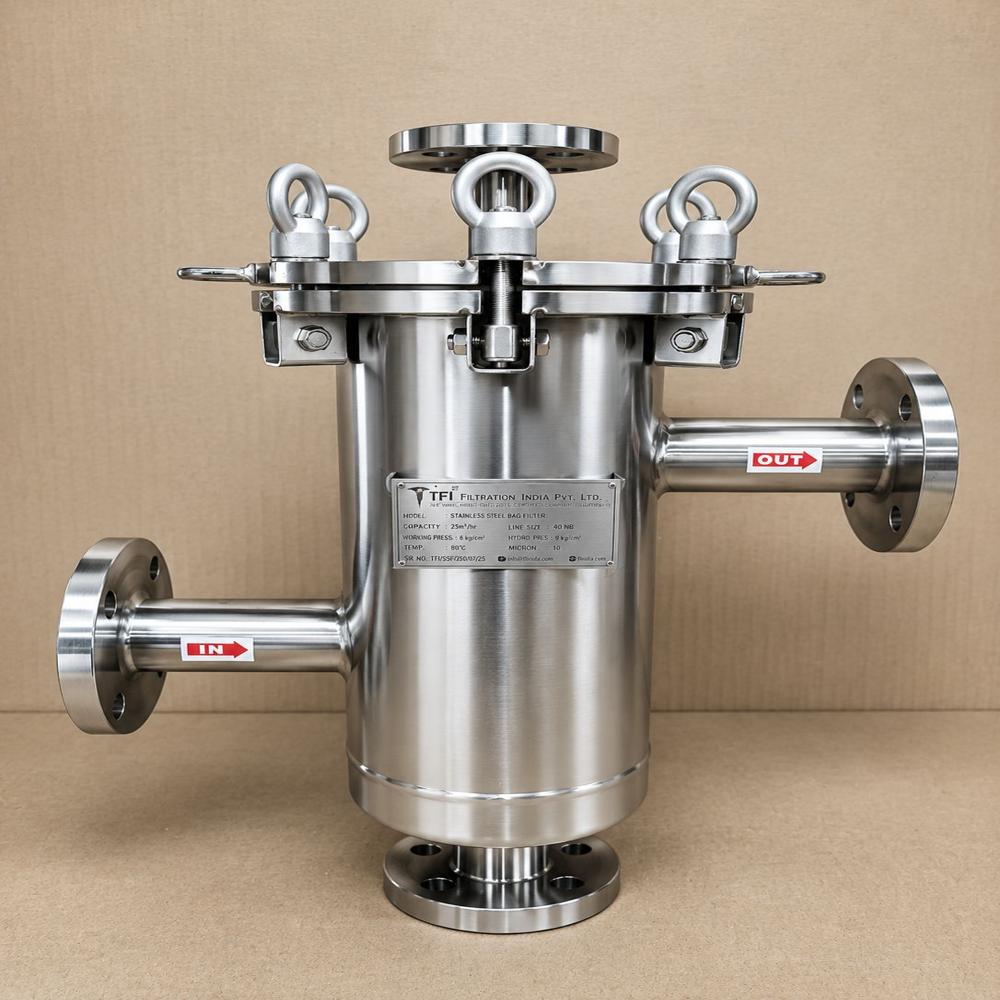

Single Cartridge Filters are compact and economical filtration solutions suitable for low to moderate flow rates, point-of-use filtration, and applications where a single filter element is sufficient.

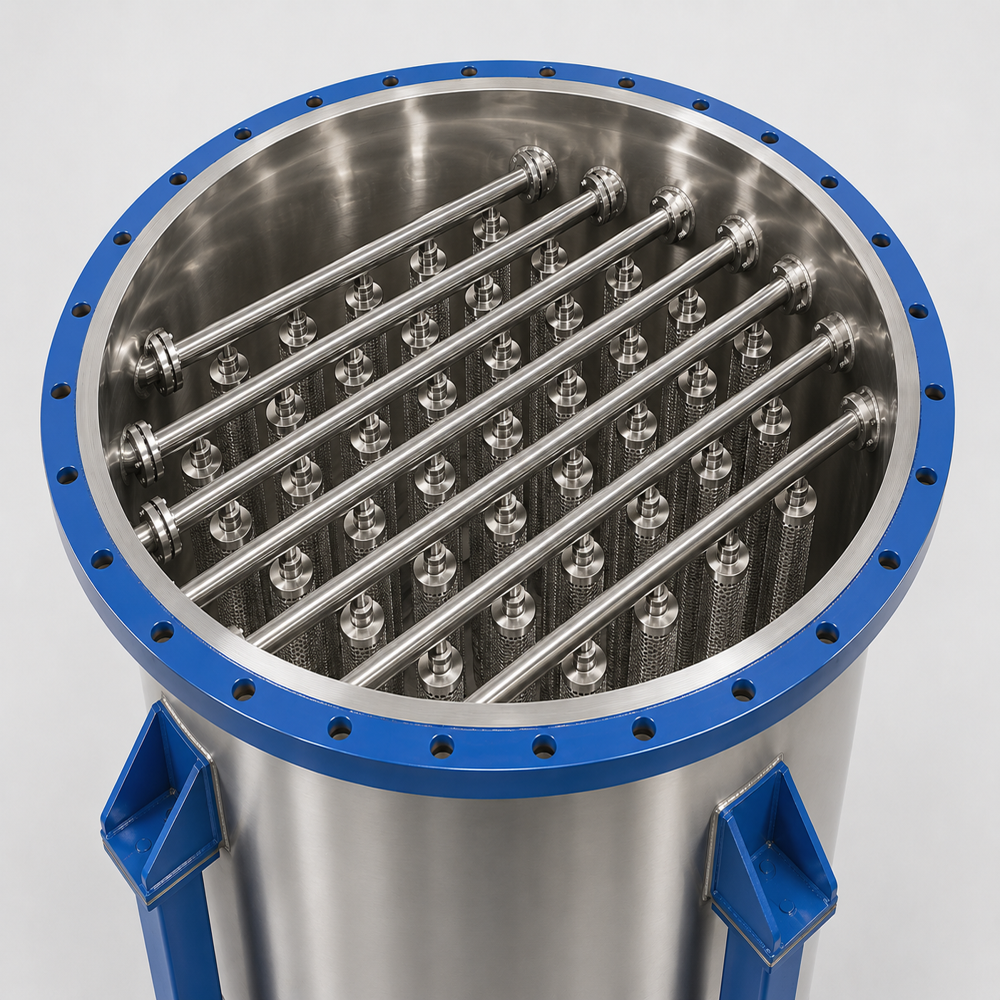

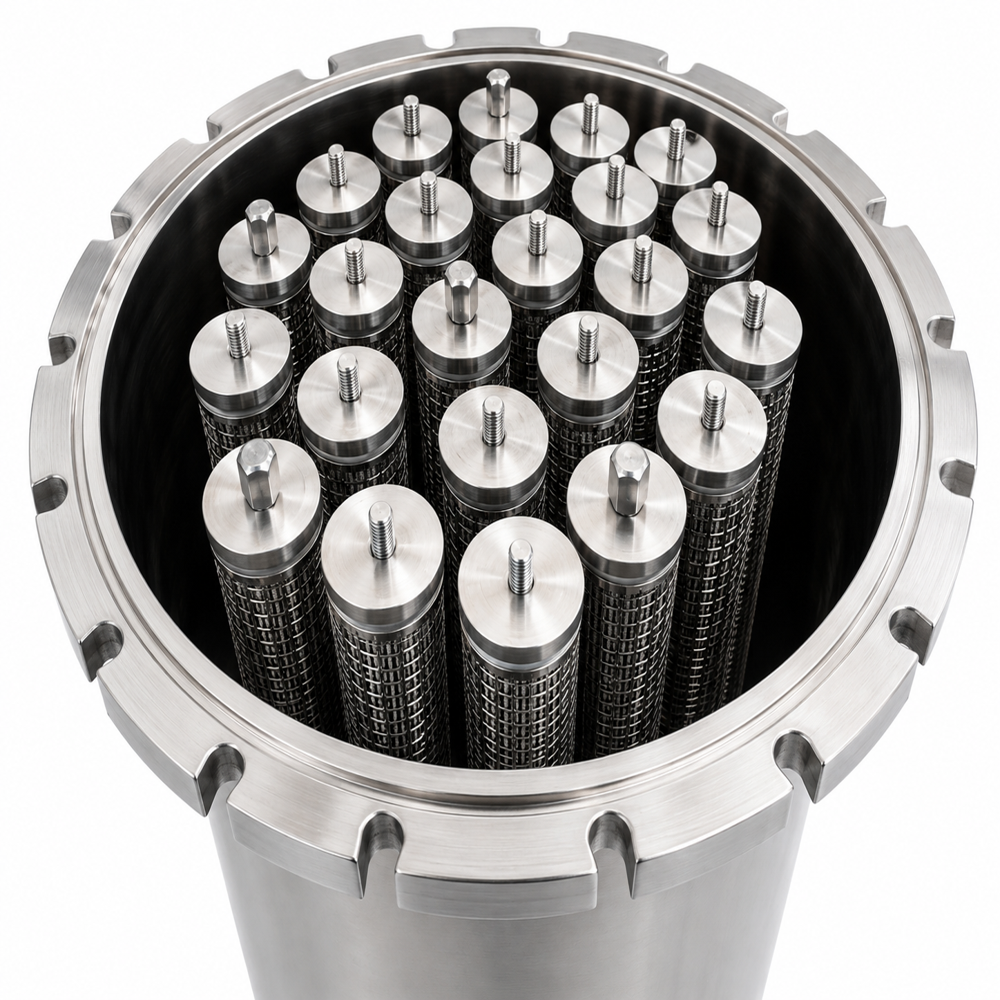

Multi Cartridge Filters accommodate multiple filter cartridges within a common housing, providing a significantly higher filtration area and flow capacity. They are suitable for higher-flow applications and can be configured with multiple cartridges to meet specific process requirements.

Key Features

• Available in single and multi-cartridge configurations
• Suitable for liquid and gas filtration
• Wide range of cartridge lengths, diameters, and configurations
• Compatible with various filter media and cartridge types
• Filtration ratings available from coarse to fine/microfiltration
• SS304, SS316 and other MOC options available
• Robust construction for industrial applications
• Low pressure drop with appropriate cartridge selection
• Easy cartridge installation and replacement
• Customized connections, housing dimensions, and configurations
• Suitable for continuous and batch-process applications
• Available with vent, drain, pressure gauge and other accessories
• Cartridges can be selected as disposable, cleanable, or reusable, depending on the application

Applications

Single and Multi Cartridge Filters are widely used in:

• Pharmaceutical industries
• Food & beverage processing
• Chemical processing
• Paints & coatings
• Oil & lubricant filtration
• Water and process-water filtration
• RO pre-filtration
• Gas and air filtration
• Biotech applications
• Solvent filtration
• Ink and chemical filtration
• Industrial process filtration

Frequently Asked Questions (FAQ)

1. What is a Single Cartridge Filter?

A Single Cartridge Filter is a compact filter housing designed to accommodate one filter cartridge. It is generally used for low to medium flow-rate applications where a single cartridge provides sufficient filtration capacity.

2. What is a Multi Cartridge Filter?

A Multi Cartridge Filter is a filter housing designed to accommodate multiple cartridges. It provides a larger filtration area and higher flow capacity compared with a single-cartridge configuration.

3. What is the difference between Single and Multi Cartridge Filters?

The primary difference is the number of cartridges accommodated and the resulting filtration area and flow capacity. Single cartridge filters are suitable for smaller flow rates, while multi-cartridge filters are preferred for higher flow rates and larger process systems.

4. What cartridge types can be used?

Depending on the housing design, TFI cartridge filters can be configured with different cartridge types, including PP, PES, PTFE, PVDF, Nylon, sintered metal, wire mesh and other specialized filter cartridges.

5. What filtration micron ratings are available?

The required micron rating depends on the application and filter media. Fine filtration and microfiltration options can be selected according to the required particle-removal efficiency.

6. What materials are available for the filter housing?

Common housing materials include SS304 and SS316. Other materials or special internal components can be considered based on the fluid, temperature, pressure, and chemical compatibility requirements.

7. Can the filter be customized?

Yes. Filter housings can be customized based on flow rate, pressure, temperature, cartridge size, number of cartridges, connection size, MOC, gasket material and installation requirements.

8. Are the cartridges reusable?

Some cartridge types, such as sintered metal and wire-mesh cartridges, can be cleaned and reused. Disposable cartridges such as certain membrane and polymeric cartridges are normally replaced after use.

9. How do I select the correct cartridge filter?

Selection depends mainly on fluid type, flow rate, operating pressure, temperature, required micron rating, viscosity, chemical compatibility, cartridge size and allowable pressure drop.

10. What information is required for a quotation?

For accurate filter selection, provide:

• Fluid / gas type
• Flow rate
• Operating pressure
• Operating temperature
• Required micron rating
• Fluid viscosity, if applicable
• Required MOC
• Connection / line size
• Required number of cartridges
• Required cartridge length
• Maximum allowable pressure drop
• Application details

11. Can Multi Cartridge Filters be used for high-flow applications?

Yes. Multi-cartridge housings are particularly suitable for high-flow industrial applications, as multiple cartridges increase the available filtration area and can reduce the filtration load on individual cartridges.
