High Temperature Filter Housing
Product Description
TFI High Temperature Filter Housings are specially designed for filtration applications involving elevated-temperature liquids and process fluids. The housings are engineered to withstand high operating temperatures while providing reliable filtration performance, mechanical strength, and long service life.
Manufactured from high-quality SS 304 / SS 316, these filter housings can be customized according to the required temperature, pressure, flow rate, cartridge configuration, filtration rating, and connection size. Suitable cartridge materials, gaskets, seals, and internal components can also be selected based on the process temperature and fluid compatibility.
The robust construction and easy-access design allow convenient cartridge replacement, cleaning, and routine maintenance, making these housings suitable for demanding high-temperature industrial processes.
Key Features
- Designed for high-temperature filtration applications
- SS 304 / SS 316 construction
- Suitable for elevated-temperature process fluids
- High mechanical strength and corrosion resistance
- Customized pressure and temperature ratings
- Single or multi-cartridge configurations
- Compatible with various cartridge filter designs
- High-temperature gasket and sealing options
- Flanged, threaded or sanitary connections available
- Easy cartridge replacement and maintenance
- Optional polished finish for hygienic applications
- Designed according to specific process requirements
Typical Applications
- Hot process water filtration
- Pharmaceutical & biotechnology processes
- Food & beverage processing
- Chemical processing
- Oil & petrochemical applications
- High-temperature condensate filtration
- Hot solvent filtration
- Resin and polymer processing
- Thermal process fluids
- Industrial process filtration
Frequently Asked Questions (FAQ)
1. What is a High Temperature Filter Housing?
A High Temperature Filter Housing is a pressure-rated filtration vessel designed to accommodate filter cartridges while operating with liquids or process fluids at elevated temperatures.
2. What temperature can the housing handle?
The maximum operating temperature depends on the housing material, design pressure, cartridge material, gasket, seals, and process fluid. TFI can design the housing according to the required operating temperature.
3. Which materials are used for high-temperature applications?
The housing is generally manufactured from SS 304 or SS 316. The internal components and sealing materials are selected according to the operating temperature and chemical compatibility.
4. Can standard filter cartridges be used at high temperature?
Not always. Cartridge material and construction must be suitable for the actual operating temperature. High-temperature-rated cartridges should be selected for high-temperature service.
5. What gasket materials are suitable for high-temperature applications?
Depending on temperature and chemical compatibility, options such as PTFE, graphite, Viton/FKM, or other high-temperature sealing materials can be considered.
6. Can the filter housing also operate at high pressure?
Yes. The housing can be designed for combined high-temperature and high-pressure operation, subject to the required design conditions and applicable engineering standards.
7. Can the housing be customized?
Yes. TFI can customize the housing according to flow rate, operating temperature, operating pressure, fluid, cartridge size, cartridge quantity, micron rating, MOC and connection size.
8. What information is required to select a High Temperature Filter Housing?
The main requirements are:
- Fluid / application
- Flow rate
- Operating temperature
- Operating pressure
- Required filtration micron
- Cartridge size and quantity
- Inlet/outlet size
- Material of construction
- Maximum allowable pressure drop
9. Is SS 316 suitable for high-temperature applications?
SS 316 can be suitable for many high-temperature applications, but the suitability depends on the actual temperature, pressure, fluid chemistry and operating conditions. The complete housing and sealing system should be evaluated together.
10. Why is cartridge selection important in high-temperature filtration?
The cartridge is directly exposed to the process temperature. Using a cartridge that is not rated for the operating temperature can lead to deformation, degradation, loss of filtration performance, or premature failure.

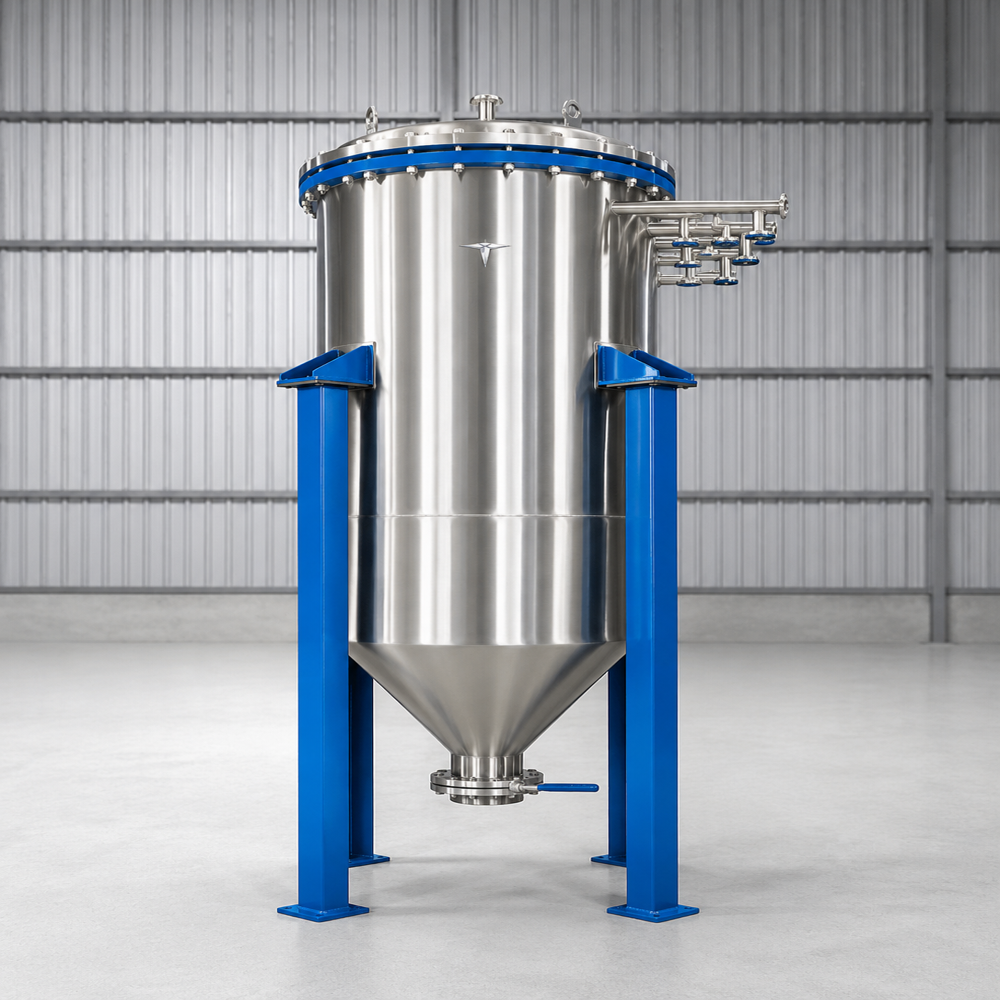

Engineered for Extreme PerformanceBuilt from premium stainless steel (SS304/SS316), this filter offers exceptional corrosion and temperature resistance for harsh industrial settings. With a housing thickness of 4-8 mm and a highly polished finish inside and out, the filter ensures both structural integrity and easy cleaning. It's well-suited for vertical mounting, featuring sturdy lifting lugs for streamlined installation.

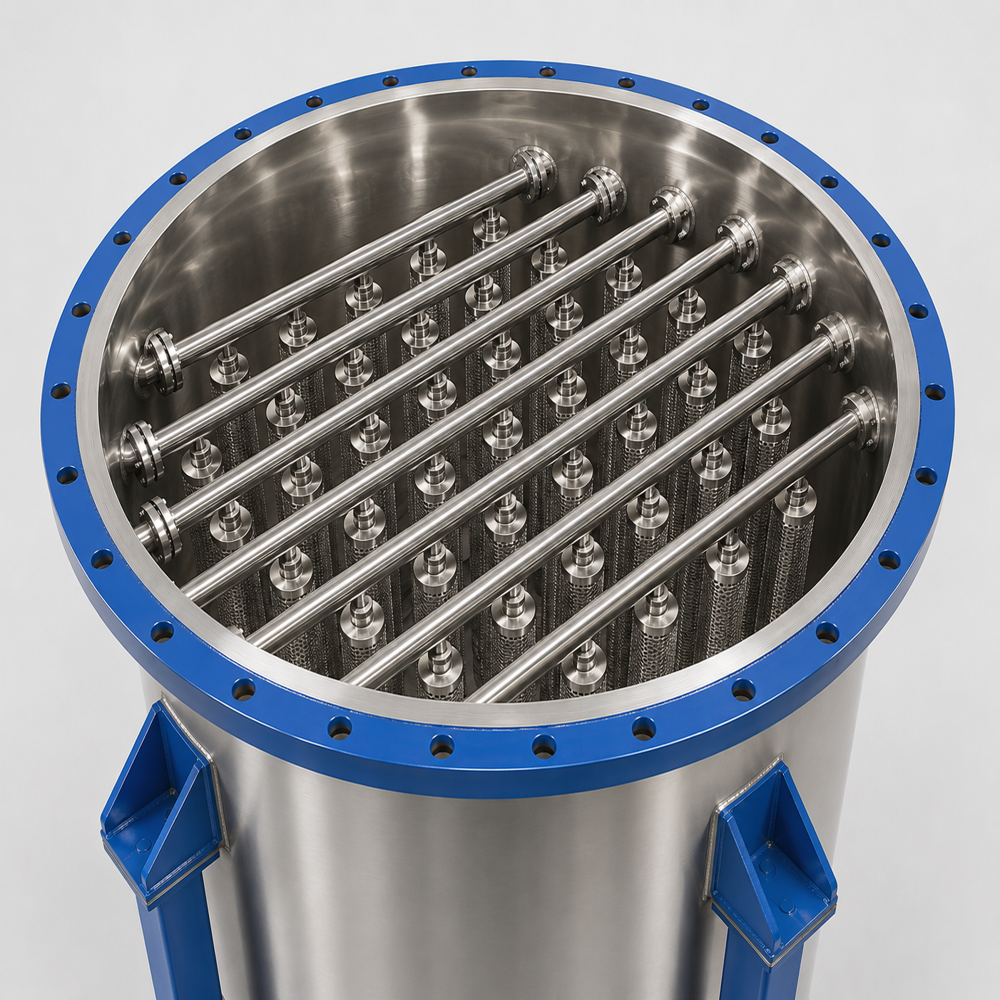

Simple Maintenance and Maximum EfficiencyMaintenance is simplified with the removable cartridge design-just extract, clean, and reinstall to keep your system running efficiently. Multiple rod-and-mesh cartridges deliver up to 99.9% efficiency, catering to specific industrial filtration requirements. Customizable pore sizes and flow rates are available to match every application need.
Versatile Connections and Application FlexibilityOffering ANSI, DIN, and JIS flange compatibility, the filter integrates seamlessly into diverse piping systems. Inlet and outlet diameters, as well as the housing diameter, are fully customizable. With pressure tolerance up to 16 bar and superior sealing from high-temperature Viton or Silicone gaskets, this filter ensures continuous, leak-free performance across a range of industries.
FAQ's of High Temperature Filter:
Q: How does the High Temperature Filter handle cleaning and maintenance?
A: The filter features removable cartridges, allowing for easy extraction and cleaning. Regular maintenance involves detaching the cartridges, washing away accumulated particulates, and reinstalling them, ensuring optimal filtration performance with minimal downtime.
Q: What industries and applications are suitable for this high temperature filter?
A: This filter is designed for industrial applications requiring high-temperature filtration, such as chemical processing, petrochemicals, power generation, and other sectors that encounter harsh, corrosive environments and elevated thermal demands.
Q: When should the cartridges be replaced or serviced?
A: Cartridges should be serviced or replaced based on the material loading, pressure drop, and scheduled maintenance intervals indicated for your specific process conditions. Frequent visual checks and pressure monitoring are recommended for optimal filter longevity.
Q: Where can the filter be installed, and how is it mounted?
A: The filter is mountable in vertical positions using the integrated flanged connections and lifting lugs. It can be installed wherever high temperature, high flow-rate filtration is necessary, and its cylindrical design optimizes footprint in plant layouts.
Q: What are the benefits of the stainless steel mesh and polished surfaces?
A: Stainless steel mesh offers durability, corrosion resistance, and precise particle retention, while the polished inner and outer surfaces reduce residue buildup, facilitate cleaning, and enhance overall filter life.
Q: How customizable are the diameter, inlet/outlet sizes, and pore ratings?
A: The filter provides extensive customization for diameter, inlet and outlet flange sizes, and mesh pore ratings from 1 to 100 microns, ensuring compatibility with a variety of piping systems and filtration requirements.
Q: What makes this filter suitable for use in harsh industrial environments?
A: Its robust construction from SS304/SS316 stainless steel, high-pressure tolerance (up to 16 bar), high-temperature gaskets, and resistance to corrosion and chemical attack make it ideal for demanding applications in harsh environments.
