About High Pressure Filter

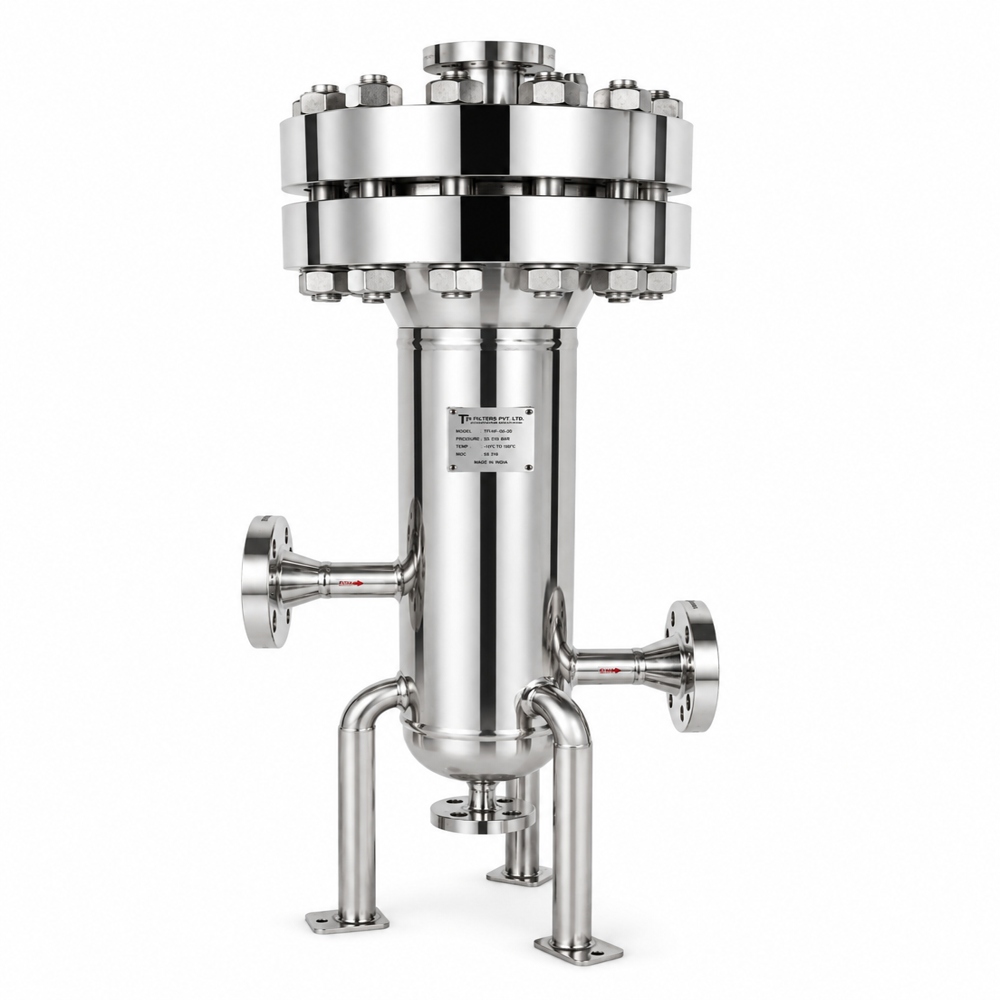

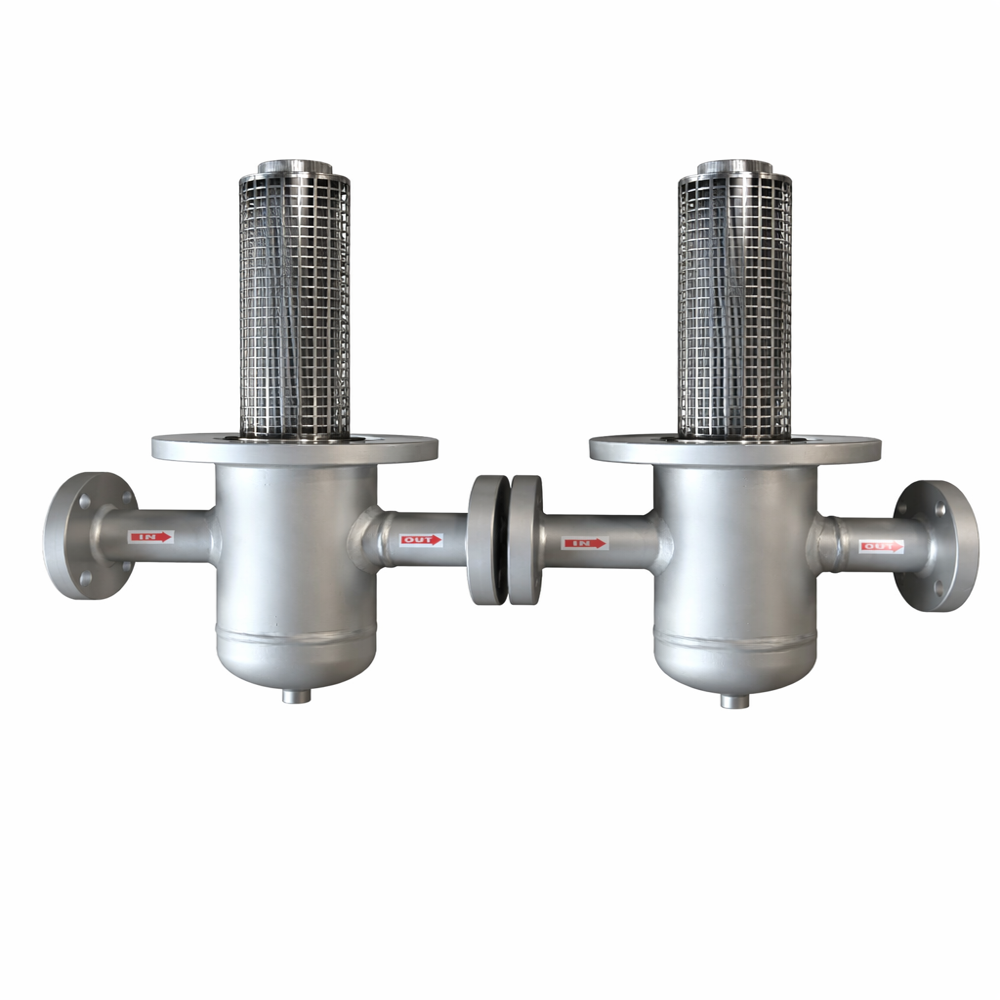

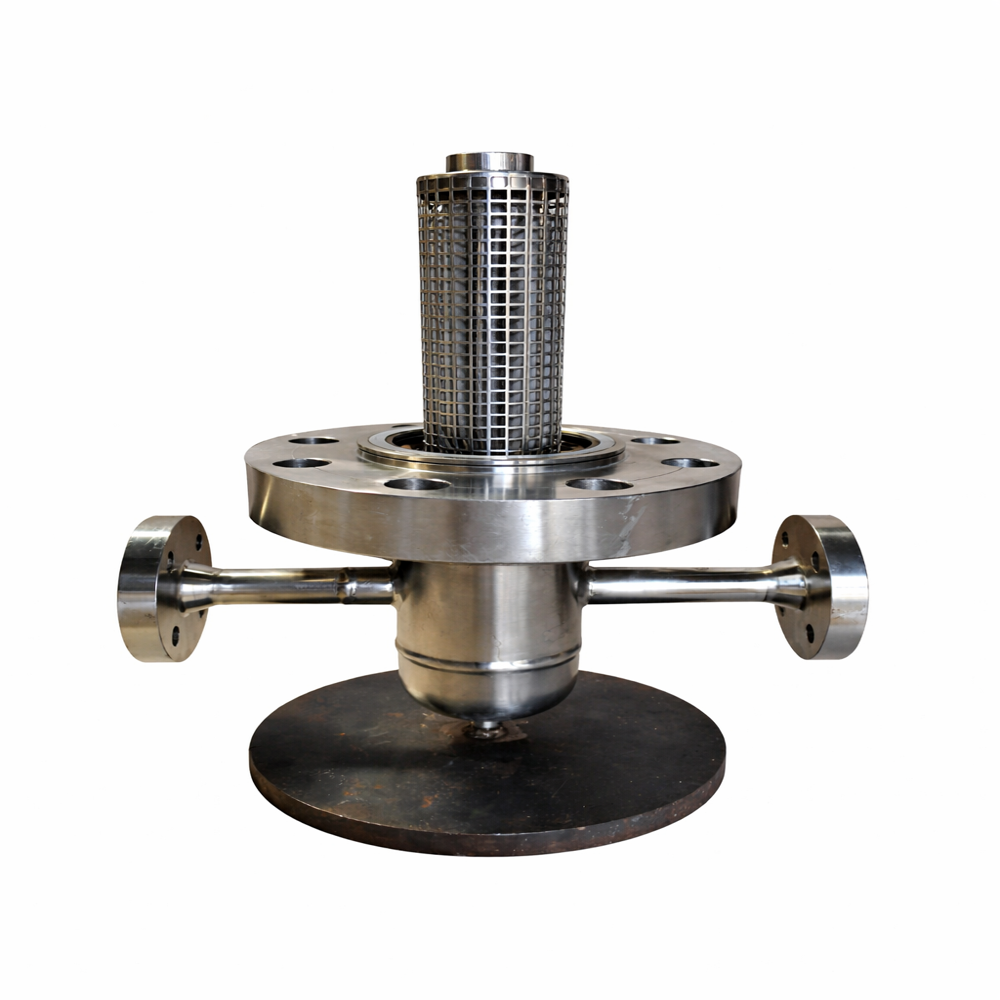

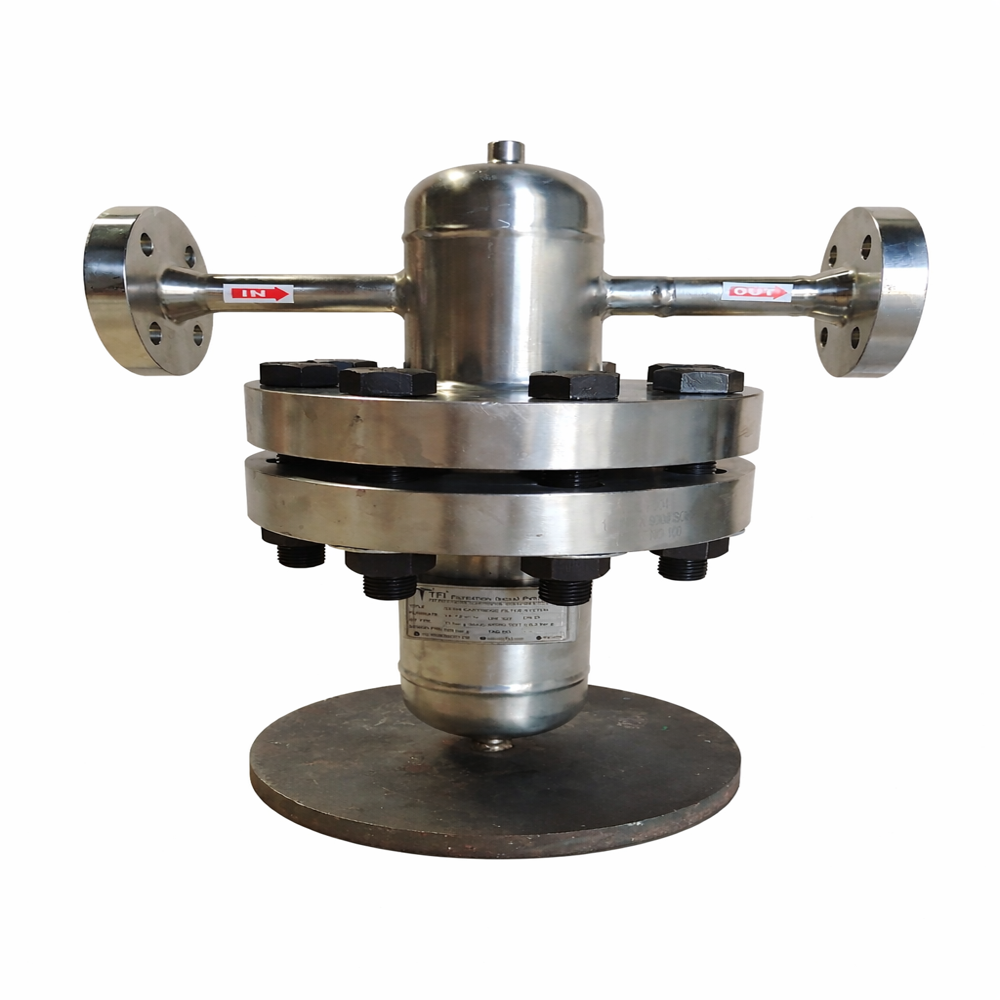

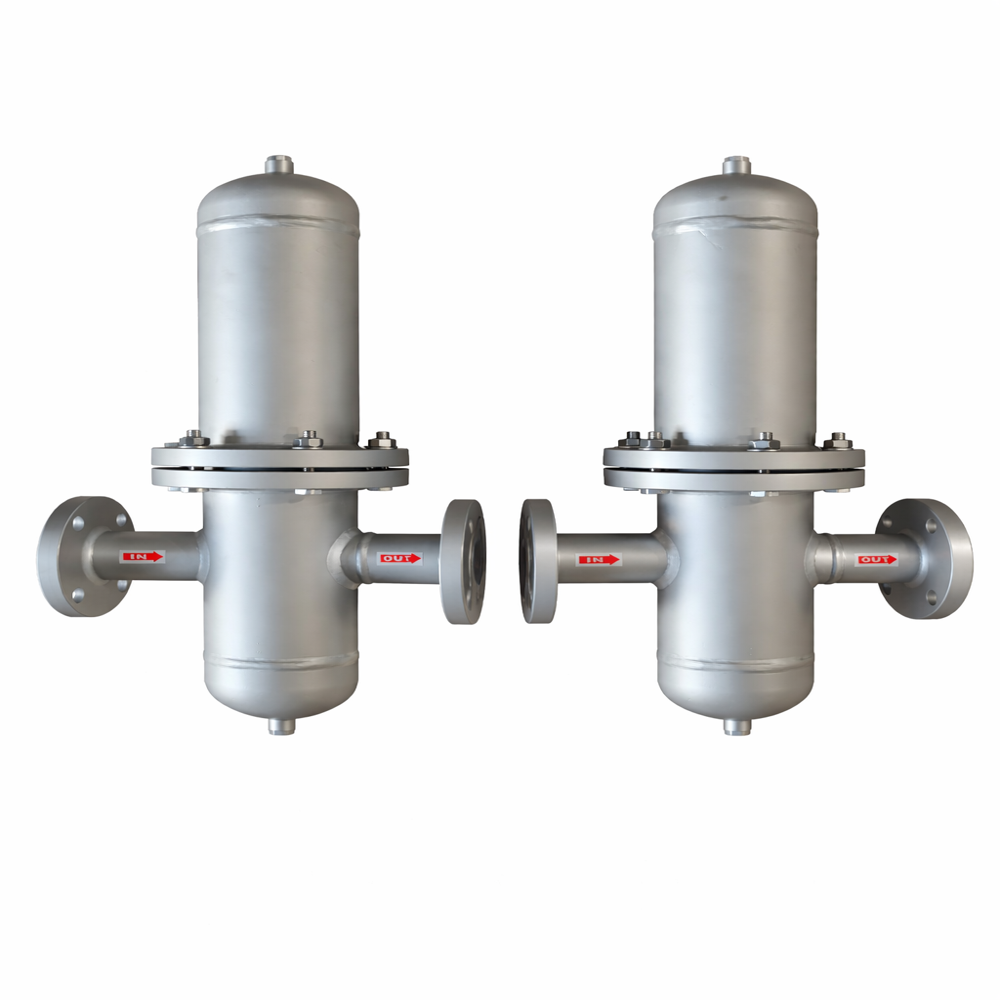

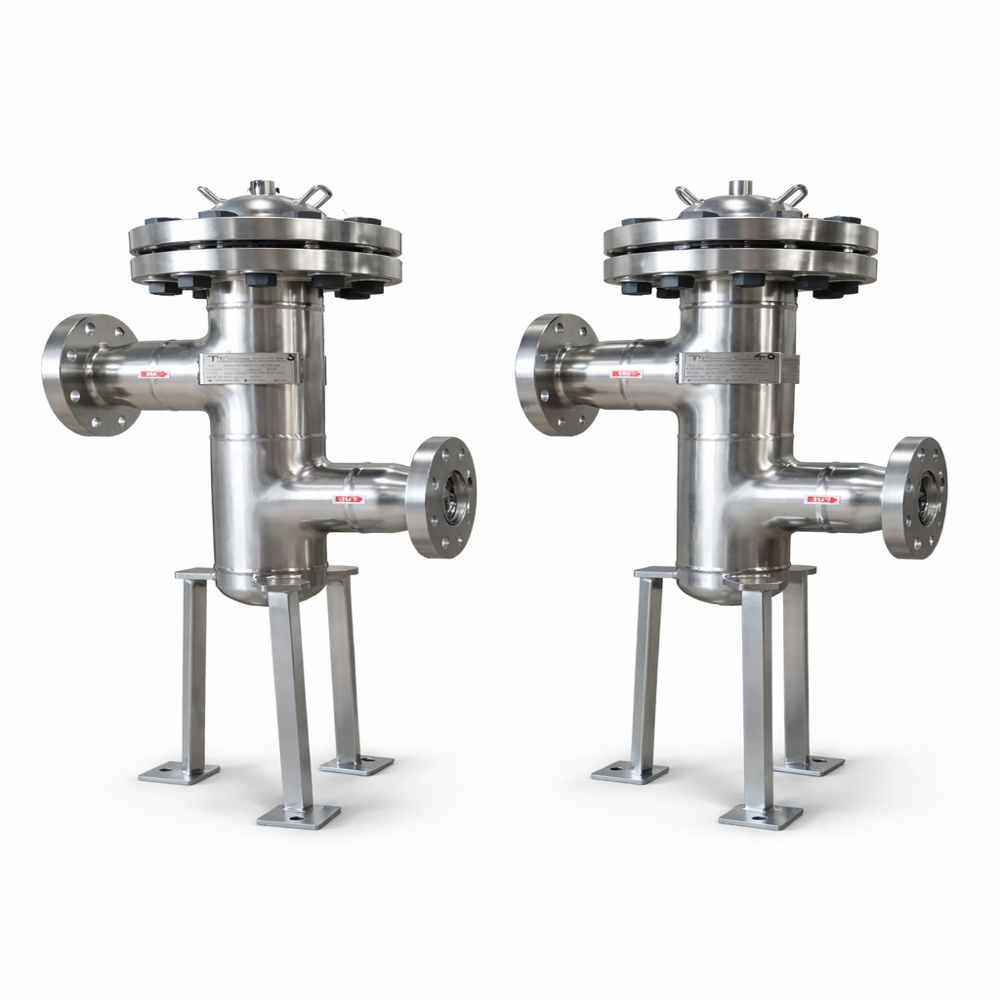

High Pressure Filter Housing

Product Description

TFI High Pressure Filter Housings are robustly engineered filtration vessels designed for the reliable removal of suspended particles, contaminants, and unwanted solids from liquids under elevated operating pressures. Manufactured from high-quality stainless steel, these filter housings provide excellent mechanical strength, corrosion resistance, and long service life.

The housing is designed to accommodate standard or customized filter cartridges and can be configured according to the required flow rate, operating pressure, temperature, filtration micron rating, cartridge length, and connection size. The removable cover allows quick and convenient cartridge replacement and simplifies routine maintenance.

High Pressure Filter Housings are suitable for demanding industrial applications where dependable filtration and pressure resistance are essential.

Key Features

• Designed for high-pressure liquid filtration
• Robust SS 304 / SS 316 construction
• High mechanical strength and corrosion resistance
• Available in single or multi-cartridge configurations
• Customized inlet and outlet connections
• Suitable for a wide range of cartridge filter ratings
• Easy cartridge replacement and maintenance
• Low-pressure-drop flow design
• Optional sanitary/mirror polishing for hygienic applications
• Bottom drain and top vent arrangements available
• Suitable for customized pressure and temperature requirements

Typical Applications

• Pharmaceutical & biotechnology
• Food & beverage
• Chemical processing
• Water & wastewater treatment
• Cosmetics
• Paints & coatings
• Oil & chemical filtration
• Process water filtration
• Pre-filtration and polishing filtration

Frequently Asked Questions (FAQ)

1. What is a High Pressure Filter Housing?
A High Pressure Filter Housing is a pressure-rated vessel designed to hold filter cartridges and remove particulate contaminants from liquids while operating at elevated pressure.

2. What materials are available for the filter housing?
TFI High Pressure Filter Housings can be manufactured in SS 304 or SS 316, depending on the application and fluid compatibility.

3. What operating pressure can the housing handle?
The pressure rating is customized according to the application. The housing can be designed for high-pressure service based on the required working pressure, design pressure, and hydro-test pressure.

4. What filter cartridges can be used?
The housing can accommodate various cartridge configurations, including DOE, 222 and 226 end-cap cartridges, subject to the selected housing design.

5. What filtration micron ratings are available?
Cartridges can be selected according to the application, commonly ranging from 0.2 micron to 100 micron.

6. Can the filter housing be customized?
Yes. TFI can customize the housing based on flow rate, pressure, temperature, cartridge quantity, cartridge length, connection size, MOC and filtration requirement.

7. How is the cartridge replaced?
The housing cover can be opened after safely isolating and depressurizing the system. The used cartridge can then be removed and replaced with a new cartridge.

8. What type of connections are available?
Depending on the application, the housing can be supplied with flanged, threaded, or sanitary connections in the required size and standard.

9. Is the filter housing suitable for hygienic applications?
Yes. SS 316 construction with suitable surface finishing and sanitary connections can be provided for pharmaceutical, food, beverage and other hygienic applications.

10. How do I select the correct High Pressure Filter Housing?
The housing should be selected based on flow rate, operating pressure, temperature, fluid type/viscosity, required micron rating, cartridge size and number of cartridges. These parameters determine the appropriate housing size and configuration.
